- Model NO.: YDM-2802D
- Type: High Pressure Pump
- Certification: CE
- Humidification Method: Mist Discharge
- Timing Function: With Timing Function
- Pump Type: High Pressure Triplex Plunger Pump
- Cover Material: Stainless Steel
- Sprayer Material: Clean Water
- Trademark: AODING or OEM
- Specification: CE
- HS Code: 84798920
- Style: Portable
- Usage: Home, Industry, Commercial & Residential
- Humidity Control: Automatic
- Power Type: Electric Motor
- Water Shortage Power-off Protection: With Water Shortage Power-off Protection
- Usuage Field: Umidification,Dedusting,Deodorization
- Cover Color: Shinning Silver
- Product Name: Fog Machine
- Transport Package: Carton
- Origin: China

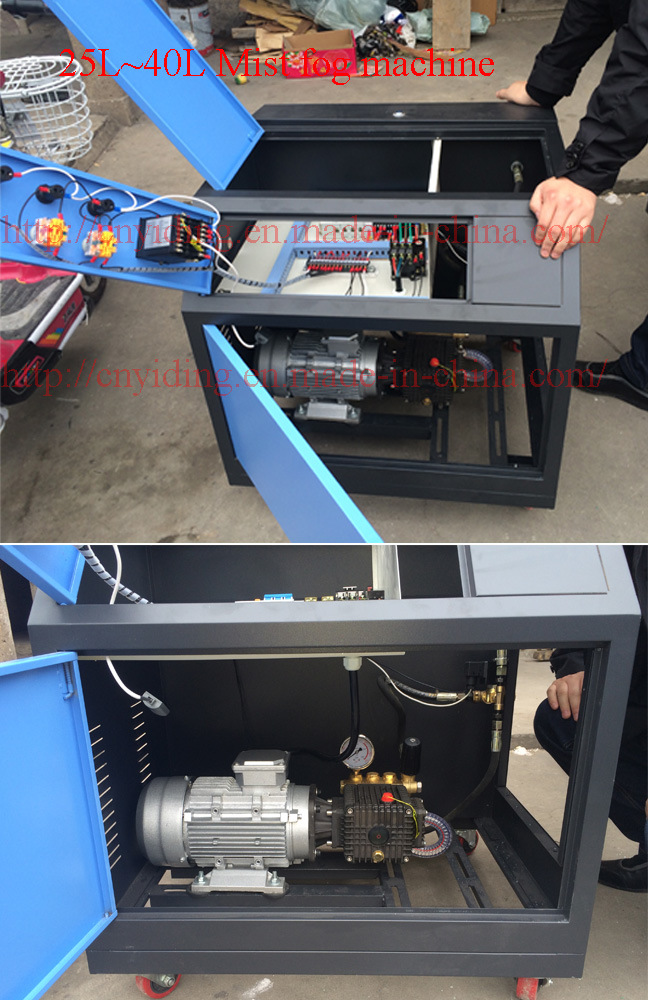

The mist system is manufactured using heavy-duty high pressure triplex plunger pump, misting/ fogger nozzle, stainless steel/brass ferrule fittings, Brass/stainless steel fittings, hardware, pressure regulator, Flexiable high pressure PE hose pipe, LCD electric control panel, electric motors. Please see detailed description below:
Standard features:
1, Triplex high pressure heavy-duty crankshaft pump;
(1), Forged brass manifold, provides high strength and corrosion resistance.
(2), Anodized die-cast crankcase, with large cooling fin for maximum heat dissipation.
(3), Hardened and precision grinding crankshaft, for maximum durability and long life.
(4), First-grade ceramic plunger, to increase resistance to pitting and wear, for maximum durability.
(5), Strengthened one-piece alloy aluminium connecting rod.
(6), Italy u-packing.
(7), Reinforced pop-off valve cage.
(8), NSK bearing, for maximum life and load distribution.
(9), Bolt-on pressure adjustable unloader
(10), pressure regulating valve, built-in bypass with solenoid valve (BPS)
2, Glycerin filled pressure gauge;
3, In line mounted with high pressure solenoid valve to prevent water leakage from the nozzle during the every second when the machine stop working;
4, Heavy duty industrial electric motor with thermal overload;
5, Single/three-phase 550w, 1400 RPM, self ventilated;
6; ON-OFF switch;
7, Pressure switch to protect pump against dry running;
8, Weatherproof SS steel cover to protect the pump and motor;
9, Bride with brass flexible coupling, easily to install and prevent leakages;
10, Brass / Stainless Steel Cleanable Fog Nozzle (Orifice Range: 0.15mm to 1.00 mm);
11, 9.52MM flexible PE Hose;
12, High filtration filter provent small articals(bigg than 0.05mm) going into the machine,
13, LCD Electric Control Panel;
14, Cyclic Digital Timer;
15, Drop the Temperature: 4-10° C;
16, Spray Effective Are: 200CBM;
17, pray Sustainable Time: 12 hours;
18, Droplet size: 5-40 Micron;
19, Diameter of Fog: < 7μ M
20, Accessories list: Nozzle, Nozzle connector, Tubing, Tubing Cutter, Water filter, Tee, Elbow, End, End Plug, Union, Male/female adapter, ball valve and water filter, etc.
21, Volume: 30m high pressure hose, 31 connectors, and 30 nozzles(0.15mm),
Function:
Increase profitability;
Reduce stress;
Control humidity;
Refresh the atmosphere;
Reduce dust & smell

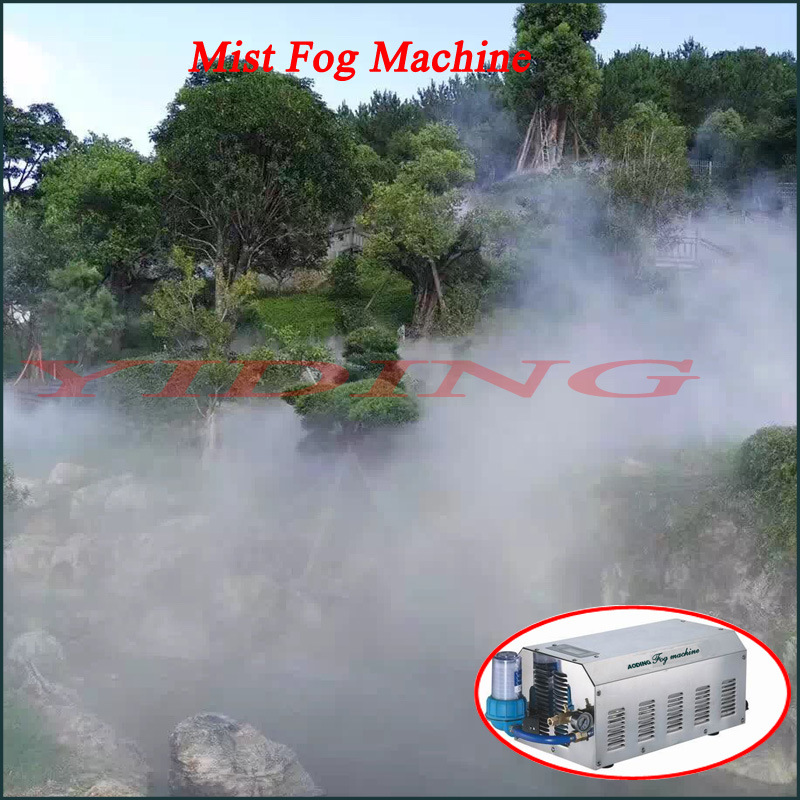

Applicaton:
(1) Stockbreeding: Deodorization, disinfection, cooling
(2) Diggings and painting area: Cooling, dust-catching, static-elimination
(3) Greenhouse, wine-cellar: Cooling and wetting
(4) Spinning industry: Wetting, static-elimination
(5)Outdoor plaza, sports, open coffee, beer bars: Sight, cooling, mosquito-killing
(6) Kursaal, park, restaurant: Sight, cooling, mosquito-killing
(7) School, factory and warehouse: Cooling
We offers a fine quality range of High Pressure Misting Systems, cooling and misting systems, which have various features including high performance, strong edges, easy to use and low maintenance. These products also have an option of customization as per our clients. We offer demonstration to help our clients.
The machine produces a 5-40 micron water droplets. These droplets when come in contact with hot or dry air immediately evaporat, resulting in a cooling of up to 12 degree C. The evaporation received with our system cools the environment with out any sort of moisture. In this manner it eliminates infections and unsanitary conditions related to other cooling systems.
Advantage:
Stop working automaticly when lack of water;
Fog can spray with different frequencies;
Controlled by the Timer;
Fog can spray at different humidity range according to the data setted;
Â
| Model | Flow Rate | Pressure | Pump Type | Rpm | Power Require | With LCD Screen | Cover | Dimensions | G.W. |
| YDM-2802D 3WZ-860 | 2L/MIN | 60BAR   860PSI | 3WZ-1206             Triplex Plunger Pump | 1400R/MIN | 750W       220V | Yes | steel | 55×25×30CM | 22KGS |
